Aero Vodochody L-59 “Super Albatros”
Czechoslovak, Two-seat Basic and Advanced Jet Trainer


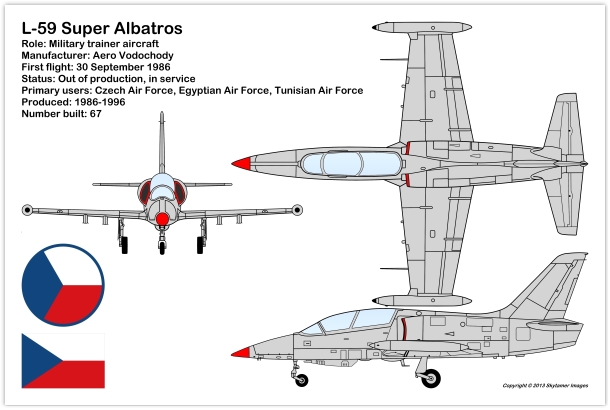

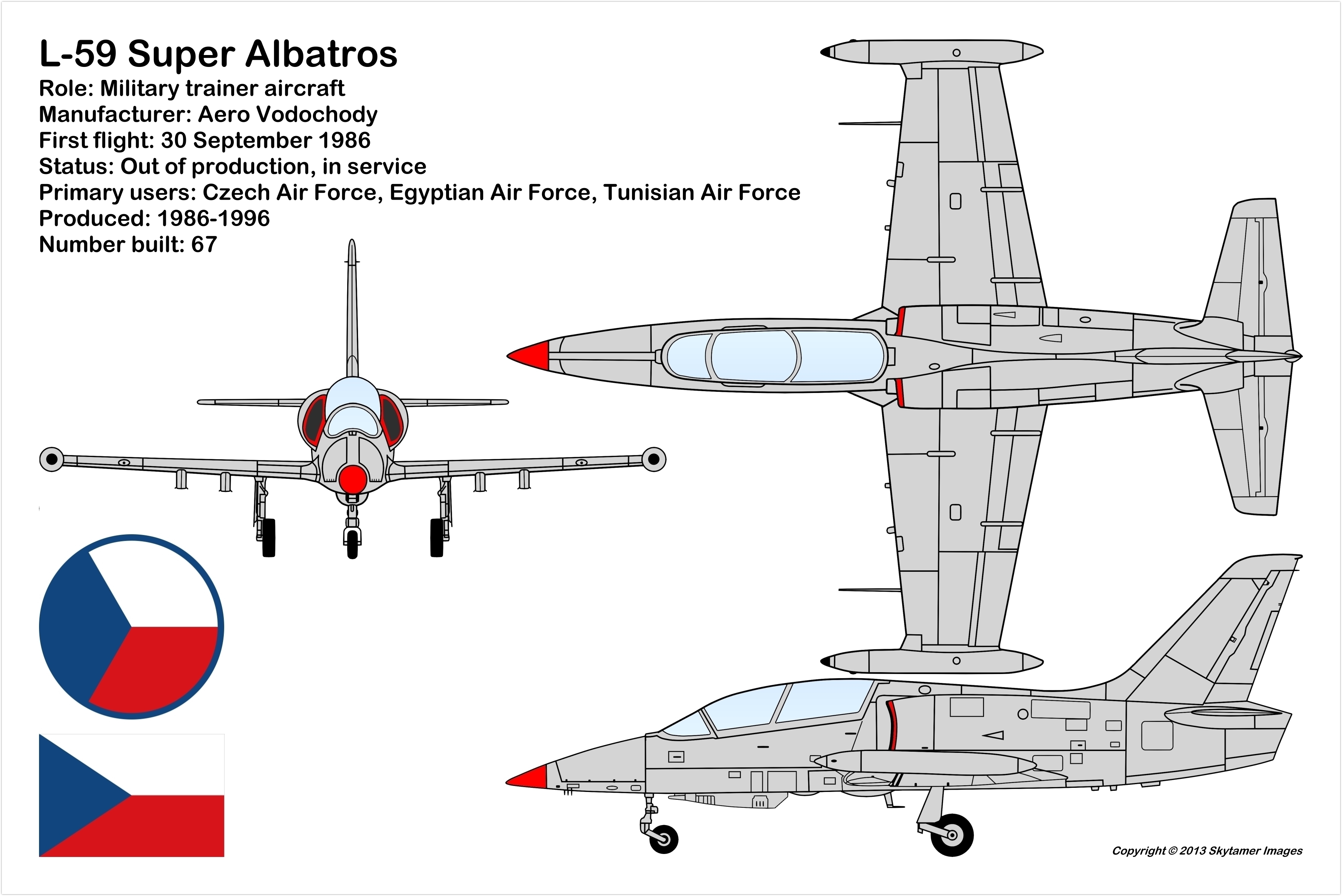

Aero L-59 “Super Albatros” Overview [2]


  • Aero L-59 “Super Albatros”
  • Role: Military trainer aircraft COIN
  • Manufacturer: Aero Vodochody
  • First flight: 30 September 1986
  • Status: Out of production, in service
  • Primary users: Czech Air Force, Egyptian Air Force, Tunisian Air Force
  • Produced: 1986–1996
  • Developed from: Aero L-39 “Albatros”
  • Variants: Aero L-159 “Alca”

The Aero L-59 “Super Albatros” is a Czech military trainer aircraft developed from the firm's earlier L-39 “Albatros”. Compared to its predecessor, it featured a strengthened fuselage, longer nose, a vastly updated cockpit, advanced avionics (including head-up display), and a more powerful engine. At the time of its first flight on 30 September 1986, it was designated the L-39MS. Aero no longer produces this aircraft.

In 1992, a dedicated single-seat attack variant was proposed under the project name ALCA (Advanced Light Combat Aircraft), and was successfully marketed to the Czech Air Force. First flight of this variant, designated L-159A, was on 2 August 1997. The aircraft features mostly Western avionics, with systems integration undertaken by Boeing. Since then a new two-seat trainer has been flown as the L-159B “Albatros II.”

Variants [2]


  • L-59 — Standard production version (six L-39MS for Czechoslovak Air Force). Later four in Czech Air Force, two in Slovak Air Force.
  • L-59E — Export version for Egypt. 49 × L-59s for Egyptian Air Force.
  • L-59T — Export version for Tunisia. 12 × L-59s for Tunisian Air Force.

Operators [2]


  • Egypt — Egyptian Air Force 48 delivered in 1993-1994.
  • Tunisia — Tunisian Air Force 12 delivered in 1995-1996.

Combat History


In April 2014, Tunisian L-59s were used in reconnaissance and COIN strikes in support of major military offensives in the border region of Mount Chaambi against Ansar al-Sharia and al-Qaeda-linked militants that aim at destabilizing Tunisia's transition to democracy.

Aero Vodochody L-59E “Super Albatros” Specifications and Performance Data [3]


Type

  • Developed a version of L-39 jet trainer.

Program

  • Originally known as L-39MS.
  • First flight of X-22 prototype (OK-184) 30 September 1986.
  • Two more prototypes (X-24, X-25) flown 26 June and 6 October 1987.
  • First flight of production L-39MS, 1 October 1989.
  • First flight prototype L-59E, April 1992.
  • Deliveries of L-59E began (two aircraft) 29 January 1993.

Current Versions

  • L-39MS: Initial production version for Czech and Slavic Air Force.
  • L-39E: Production version for Egyptian Air Force, generally as L-39MS but with Western avionics. “Detailed description applies to this version.”

Customers

  • Czech and Slavic Air Forces (six L-39MS)
  • Egyptian Air Force (48 × L-59E)

Costs

  • Egyptian order reportedly worth $204 million

Design Features

  • Main changes are a reinforced fuselage.
  • New and more powerful engine.
  • Upgraded avionics.
  • More pointed nose.

Flying Controls

  • Generally as L-39C except that ailerons and elevators have Czech-designed irreversible power controls and no tabs.

Structure

  • Generally as for L-39C except for light alloy/honeycomb sandwich ailerons and elevators, and reinforced fuselage.

Landing Gear

  • Czech design gas/oil shock absorption.
  • K36 main wheels (610 × 215 mm) and K37 nose wheel (465 × 180 mm).
  • Main wheel tire pressure 6.0 bars (87 psi) on clean aircraft, 8.0 bars (116 psi) on combat equipped version.
  • Corresponding nose wheel tire pressures are 3.5 bars (51 psi) and 4.5 bars (65 psi).
  • Six-piston, air-cooled hydraulic disc brakes on main wheels, with electronic anti-skid units.

Power Plant

  • One 21.57 kN (4,850 lb st) Progress (Lotarev/ZVL) DV-2 turbofan.
  • Internal fuel in fuselage tanks (total 1,077 L: 284.5 US gallons: 237 Imp gallons and two 230 L (60.8 US gallons: 50.6 Imp gallon) non-jettisonable wing tanks.
  • Provision for two under wing (inboard) 150 or 350 L (39.6 or 92.5 US gallons: 33 or 77 Imp gallon) drop tanks.

Accommodation

  • Crew of two and tandem on Czech VS-2 zero/zero ejection seats.
  • One-piece canopy, hinged at rear and opening upward.

Systems

  • Cockpits pressurized (max overpressure 0.30 bar; 4.35 psi) and air-conditioned, using engine bleed air (25 L/min; 0.883 ft³/min) and cooling unit.
  • Automatic temperature control from 15°C to 30°C.
  • Hydraulic system comprises first and second subsystems each with engine driven variable flow pump with operating pressure of 150 bars (2,175 psi), max flow rate 25 L/min (6.6 US gal/min; 5.5 Imp gal/min).
  • Emergency hydraulic pump for second subsystem driven by APU.
  • Main (9 kW) and standby (6 kW) generators for electrical power, plus 25 Ah nickel-cadmium battery.
  • Gaseous oxygen system for crew.
  • Saphir 5M APU for engine starting and drive of standby hydraulic pump and generator.

Avionics (L-39 MS)

  • LPR 80 VHF/UHF com radio with intercom
  • LUN 3524 standby radio
  • Bendix/King KNS 660 flight management system
  • KNR 634 VOR
  • KTU 709 Tacan
  • KDF 806 ADF
  • KRA 405 radar altimeter
  • KLN 670 GPS
  • KXP 756 transponder
  • KAH 460 AHRS
  • KAD 480 air data system
  • EFS 40 EFIS
  • Flight Visions F-200 HUD and admission computer with video camera in front cockpit and monitor in rear cockpit

Armament

  • Single 20-barrel 23 mm GSh gun in under fuselage pod below front cockpit.
  • Ammunition (150 rounds) housed in fuselage.
  • Four underwing hard points, inner ones each with 500 kg (1,102 lb) capacity, outer ones each 250 kg (551 lb) capacity.
  • Underwing stores of former Soviet types, including bombs of up to 500 kg size and UB-16-57M (57 mm) rocket launchers.

Dimensions, External

  • Wing span, including tip tanks: 9.54 m (31 ft 3½ in)
  • Wing cord at root: 2.80 m (9 ft 2&frac;14; in)
  • Wing cord at tip: 1.40 m (4 ft 7 in)
  • Wing aspect ratio (geometric): 4.4
  • Wing aspect ratio (including tip tanks): 5.2
  • Length overall: 12.20 m (40 ft 0¼ in)
  • Height overall: 4.77 m (15 ft 7¼ in)
  • Tailplane span: 4.40 m (14 ft 5 in)
  • Wheel track: 2.44 m (4 ft 4¾ in)
  • Wheelbase: 4.39 m (14 ft 4¾ in)

Areas

  • Wings, gross: 18.80 m² (202.36 ft²)
  • Ailerons (total): 1.686 m² (18.15 ft²)
  • Trailing-edge flaps (total) 2.68 m² (28.89 ft²)
  • Air brakes (total): 0.50 m² (5.38 ft²)
  • Fin: 2.60 m² (27.99 ft²)
  • Rudder, including tab: 0.91 m² (9.80 ft²)
  • Tailplane: 4.15 m² (44.64 ft²)
  • Elevators, including tabs: 1.14 m² (12.27 ft²)

Weights and Loadings

  • Weight Empty (trainer , including GSh-23 gun): 4,030 kg (8,885 lb)
  • Max fuel weight, internal (including wingtip tanks): 1,200 kg (2,645 lb)
  • Max fuel weight, external (two 350 L drop tanks): 544 kg (1,199 lb)
  • Maximum T-O weight (trainer, clean with external stores): 7,000 kg (15,432 lb)
  • Maximum landing weight (on concrete): 6,000 kg (13,228 lb)
  • Max wing loading (clean): 286.7 kg/m² (58.72 lb/ft²)
  • Max wing loading at 7,000 kg (15,432 lb) with max T-O weight: 372.34 kg/m² (76.26 lb/ft²)
  • Max power loading (clean): 249.82 kg/kN (2.45 lb/lb st)
  • Max power loading at 7,000 kg (15,432 lb) at max T-O weight: 372.34 kg/m² (76.26 lb/lb st)

Performance (at max trainer clean T-O weight)

  • Max limiting Mach number: 0.82
  • Max level speed at 5,000 m (16,400 ft): 467 knots (865 km/h; 537 mph)
  • Stalling speed with flaps up: 116 knots (215 km/h; 134 mph)
  • Stalling speed with flaps down: 100 knots (185 km/h; 115 mph)
  • Max rate of climb at S/L: 1680 m/m (5,510 ft/m)
  • Service ceiling: 7800 m (38,725 ft)
  • T-O run: 590 m (1,936 ft)
  • Landing run: 770 m (2,527 ft)
  • Range at 7,000 m (22,975 f) with max internal and external fuel (1,744 kg; 384 lb): 1,079 nm (2,000 km; 1,243 miles)
