Brock KB-2 “B” Listings Brunner-Winkle "Bird CK"

Brunner-Winkle Bird BK
United States — Air-taxi/sporting biplane


Archive Photos

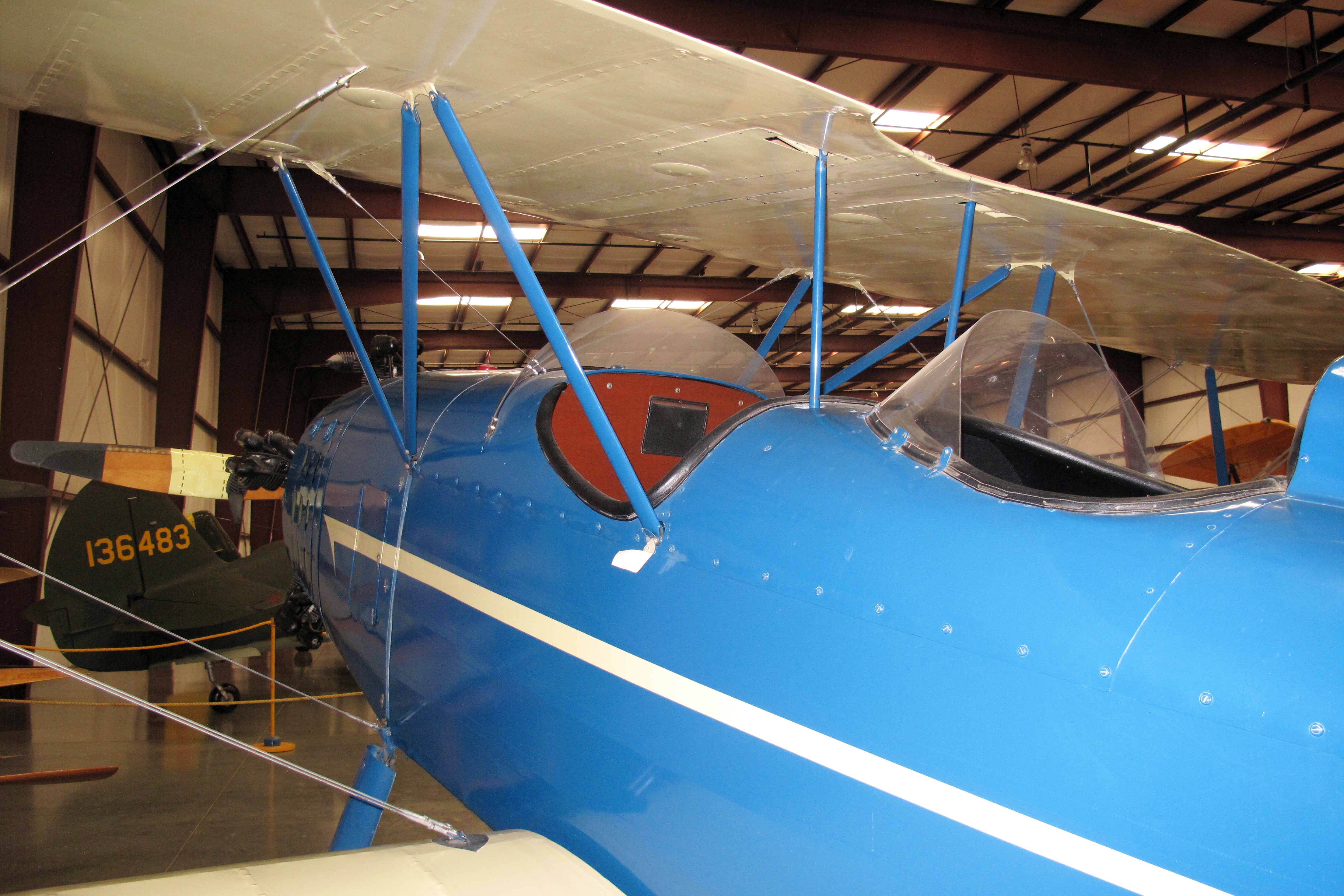

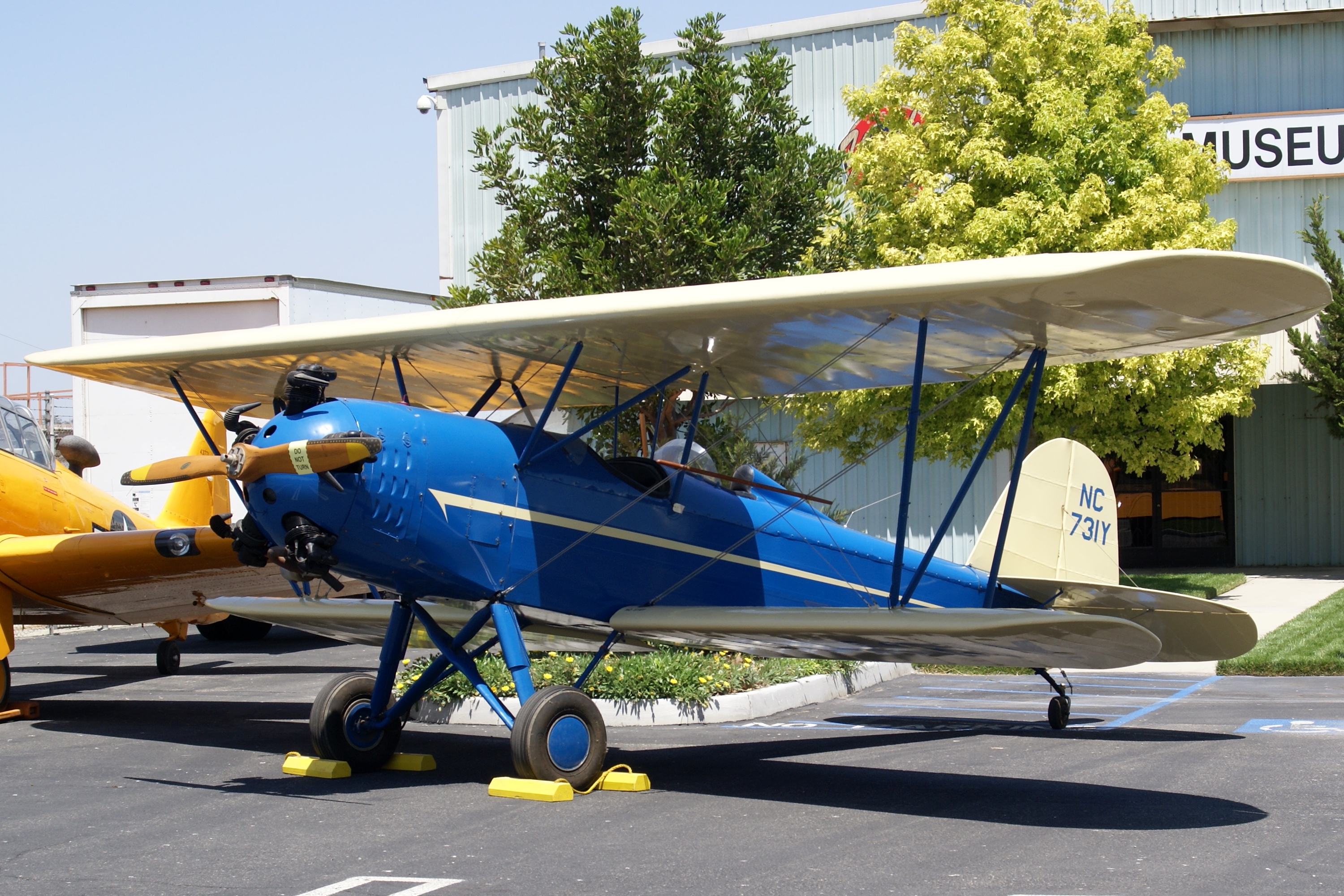

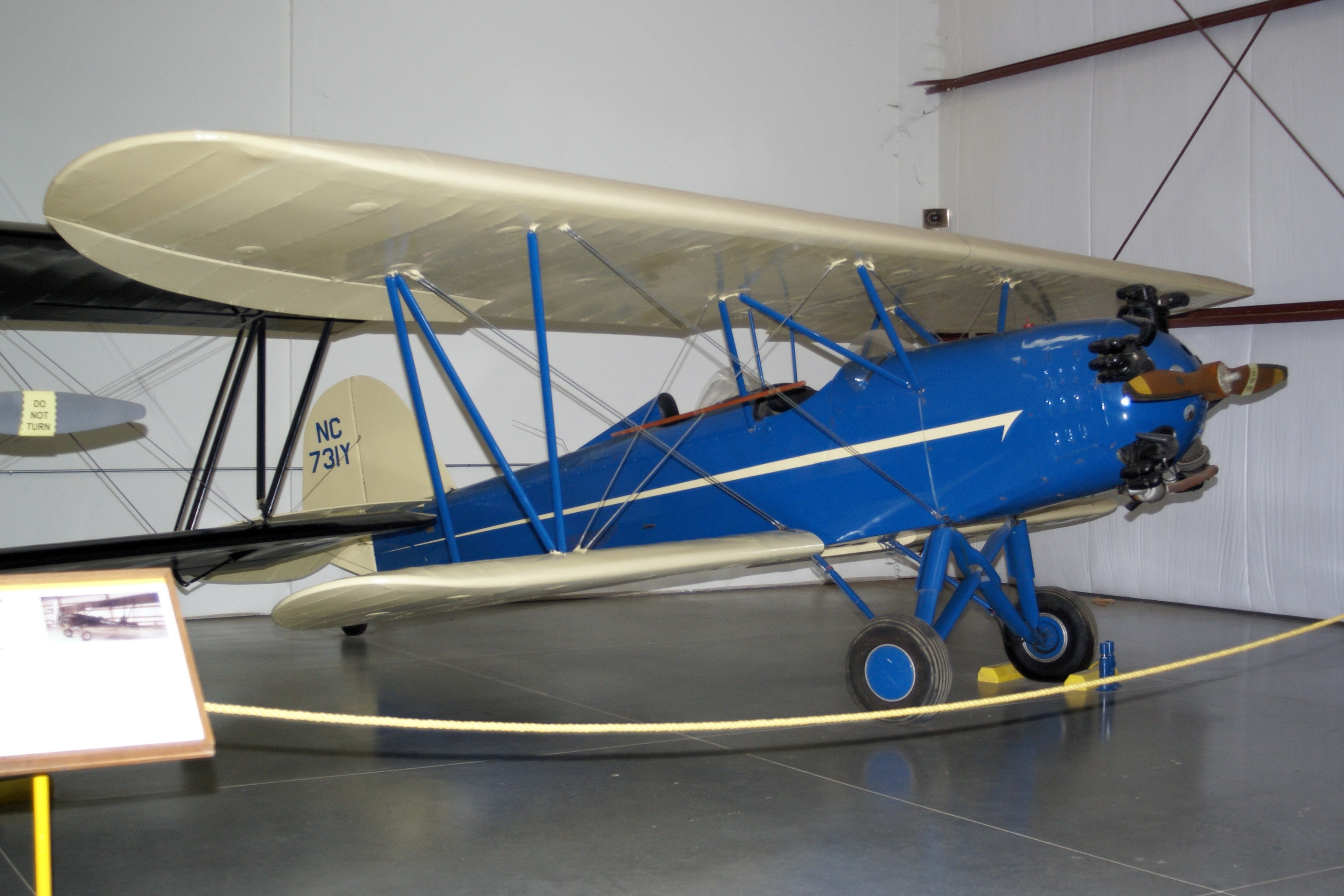

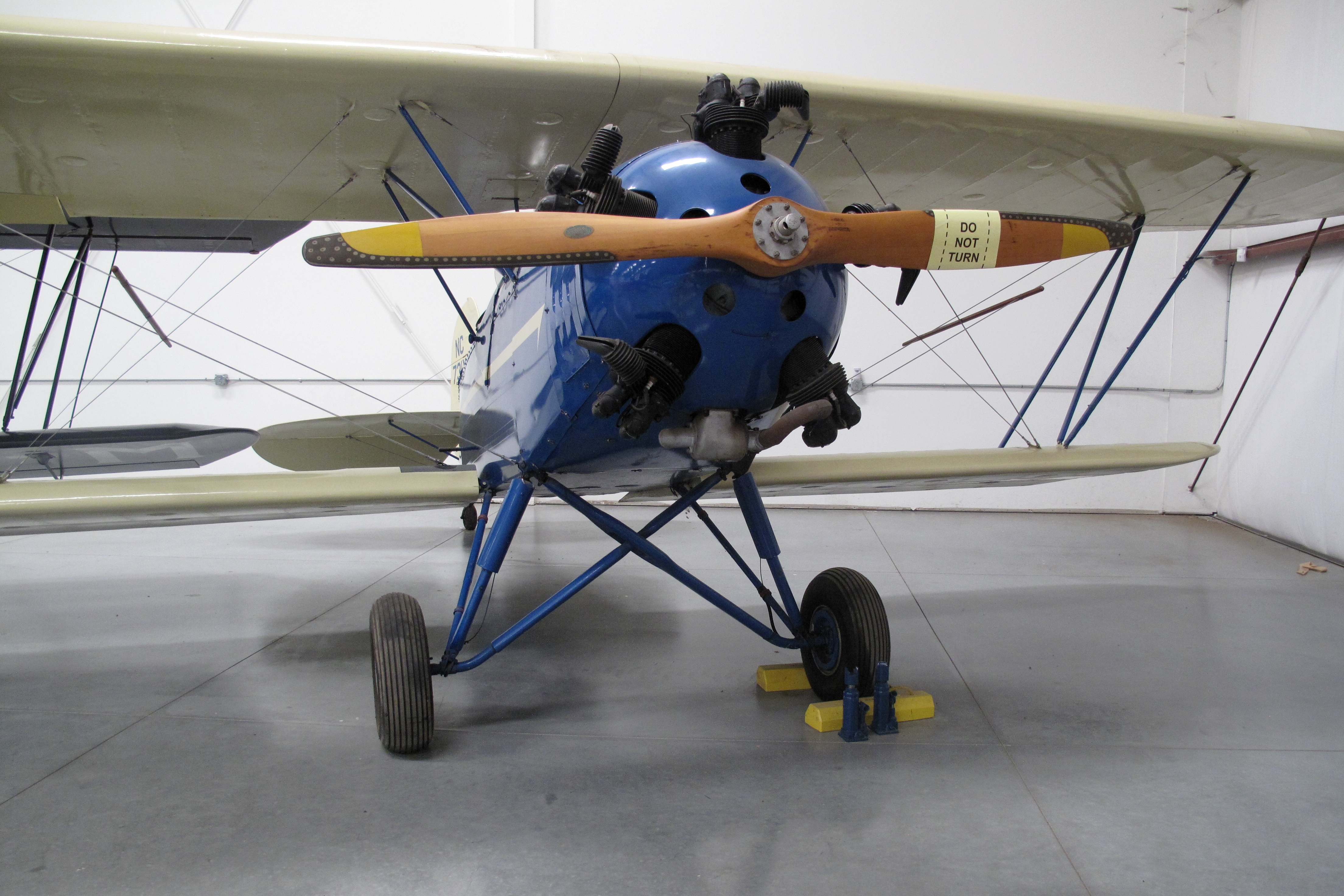

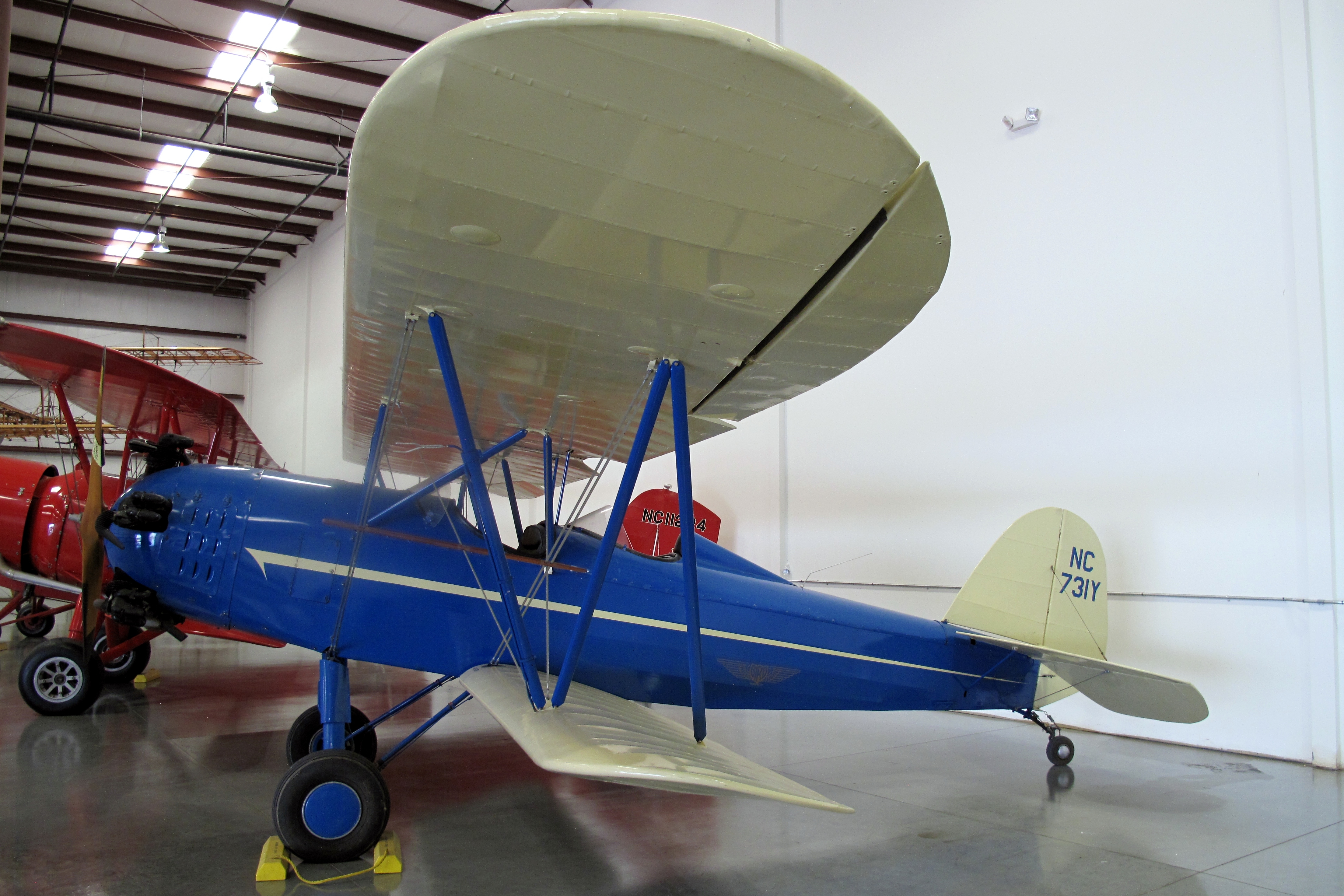

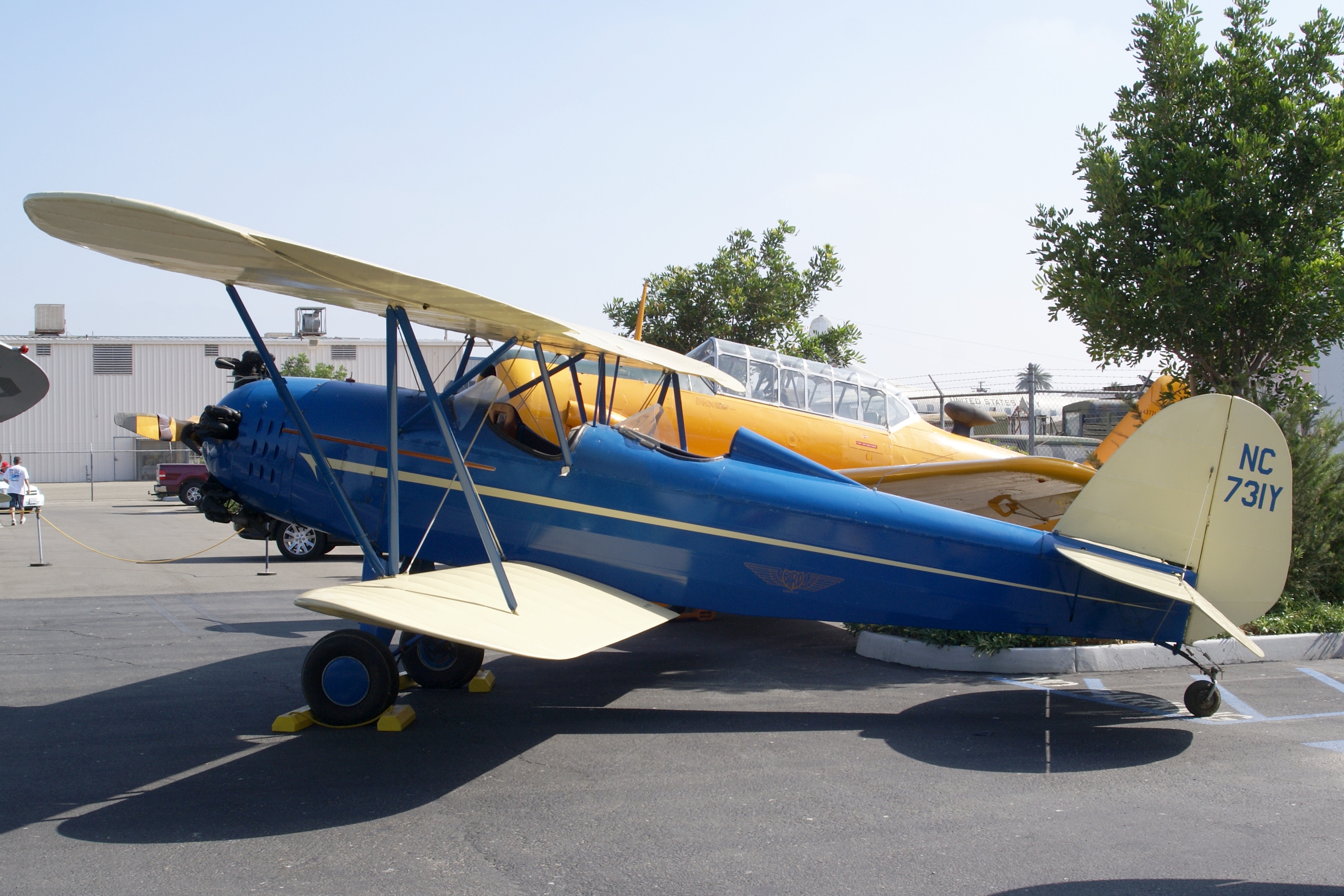

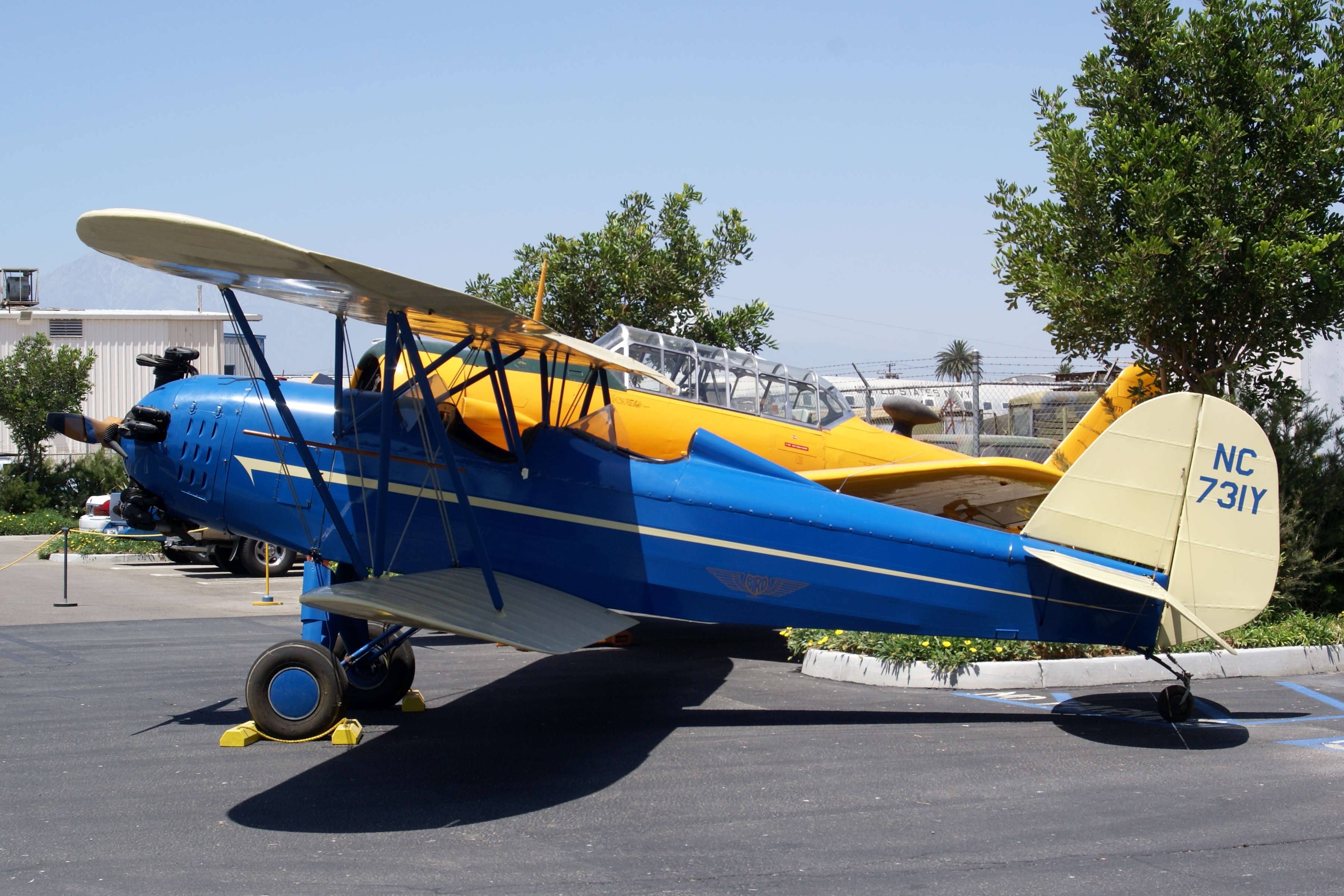

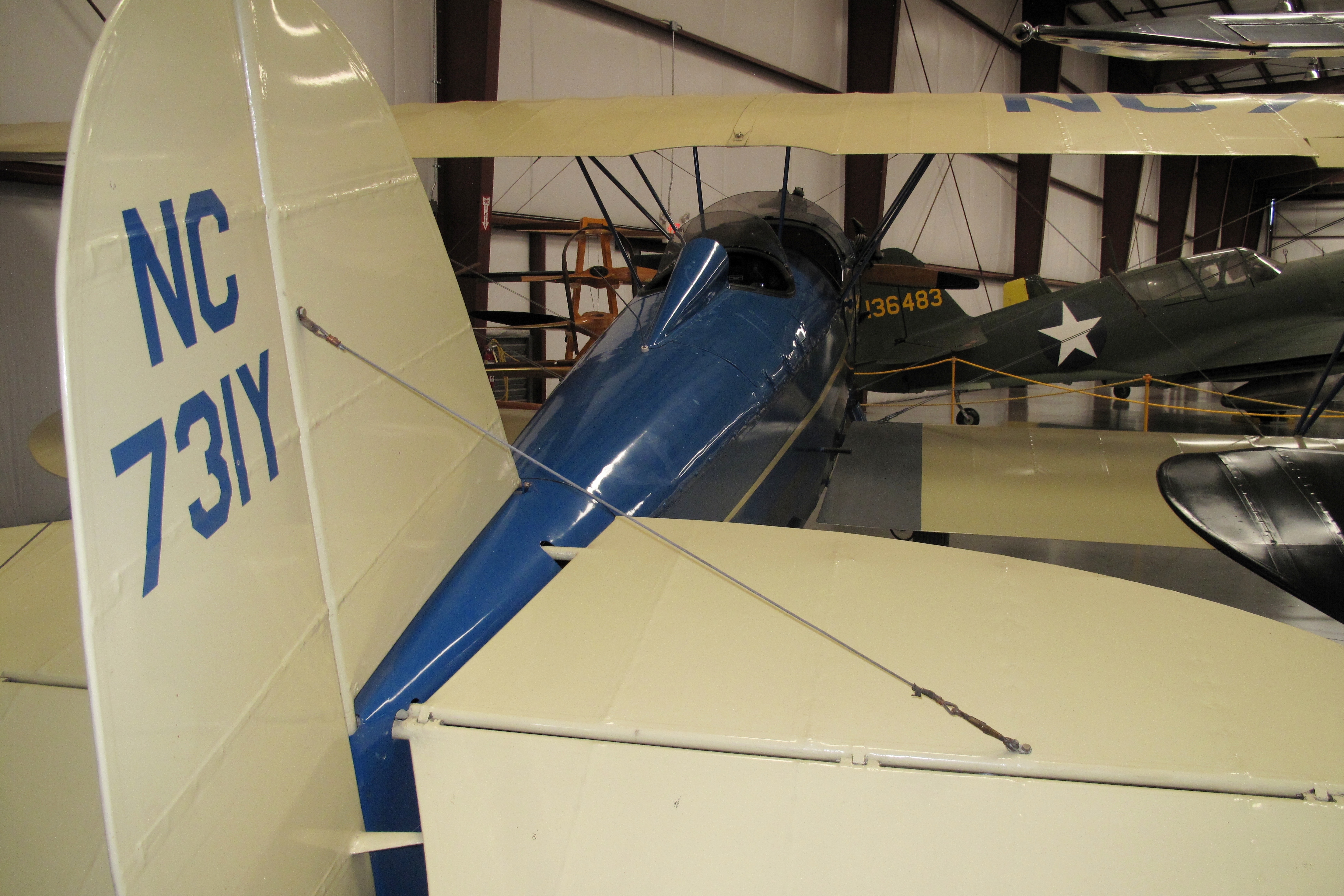

1930 Brunner-Winkle "Bird BK" (N731Y, c/n 2039-19) at the Yanks Air Museum, Chino, CA (Photos by John Shupek)

Overview


  • Aircraft: Bird BK
  • Role: Air-taxi / Sporting Biplane
  • Country of Origin: United States
  • Manufacturer Brunner-Winkle
  • First flight: September 1928
  • Number built: 240

The Brunner-Winkle Bird was a three-seat taxi and joy-riding aircraft produced in the USA from 1928 to 1931. The Model A version was powered by the ubiquitous Curtiss OX-5, and featured a welded steel-tube truss fuselage with metal and fabric skinning. The wings, constructed of Spruce and plywood were also covered with metal and fabric skinning. The Model A had a reasonable performance for an OX-5 powered aircraft. The Model A's ease of handling led to it's entry into the 1929 Guggenheim Safety Airplane contest, where it was awarded the highest ratings for a standard production aircraft. The Model A was awarded Group 2 approval no 2-33 in January 1929 for the first nine aircraft serial no. 1000 to 1008. Aircraft serial no. 1009 upwards were manufactured under Air Transport Certificate no. 101.

Variants


  • Model A - original production version with Curtiss OX-5 engine (ca. 80 built)
  • Model AT - version with Milwaukee Tank engine (2 converted from Model A)
  • Model B - version with Kinner K-5 engine (1 prototype)
  • Model BK - production version of Model B (84 built)
  • Model C - version with Wright J-5 engine (1 built)
  • Model CC - version with Curtiss R-600 Challenger engine (1 built)
  • Model CJ - version with Jacobs LA-1 engine (6 built)
  • Model CK - version with Kinner B-5 engine (50 built)
  • Model RK - export version of Model CK (1 built)
  • Model E - 4-5 seat version with enclosed cabin and Kinner B-5 engine (1 built)
  • Model F - version with Packard DR-980 (1 built)

Specifications (Bird Model BK)


General Characteristics

  • Crew: 1
  • Capacity: 2 passengers
  • Length: 23 ft 0 in (7.01 m)
  • Wingspan: 34 ft 0 in (10.36 m)
  • Height: 8 ft 8 in (2.64 m)
  • Wing area: 266 ft² (24.7 m²)
  • Empty weight: 1,200 lb (544 kg)
  • Max T/O weight: 1,900 lb (862 kg)
  • Powerplant: 1 × Kinner K-5 air cooled radial gas engine, 100-hp at 1,810 rpm max
  • Fuel capacity: 37 US gallons

Performance

  • Maximum speed: 110 mph (177 km/h)
  • Cruise speed: 90 mph (145 km/h)
  • Range: 500 miles (805 km)
  • Service ceiling: 14,000 ft (4,267 m)
  • First flight: 1929

References


  1. Photos: John Shupek, Copyright © 2009 Skytamer Images. All Rights Reserved
  2. Wikepedia. "Brunner-Winkle Bird." [Online] Available http://en.wikipedia.org/wiki/Brunner-Winkle_Bird, 11 December 2009
  3. Yanks Air Museum, Display Sign
