Beechcraft T-34A “Mentor”
United States Air Force Two-seat Primary Trainer


Archive Photos 1,4


1953 Beech T-34A “Mentor” (AF 53-4155) on display (c.1992) at the 1992 Hawthorne Air Faire, Hawthorne, California (Photo by John Shupek copyright © 1992 Skytamer Images)

1953 Beech T-34A “Mentor” (Model A45, s/n G-18, N777SU) on display (9/29/2003) at the Kalamazoo Aviation History Museum, Portage, Michigan (Photo by John Shupek copyright © 2003 Skytamer Images)

1955 Beech T-34A “Mentor” (N2042T, s/n G-826, Model A45) on display (c.1998) at the 1988 MCAS El Toro Airshow, MCAS El Toro, Santa Ana, California (Photo by John Shupek copyright © 1998 Skytamer Images)

1955 Beech T-34A “Mentor” (N2042Y, s/n G-826, Model A45) on display (7/16/2000) at the 2000 Torrance Airshow, Zamperini Field, Torrance, California (Photo by John Shupek copyright © 2000 Skytamer Images)

1955 Beech T-34A “Mentor” (N2042Y, s/n G-826, Model A45) on display (1/7/2006) at the 2006 Cable Air Show, Cable Airport, Upland, California (Photo by John Shupek copyright © 2006 Skytamer Images)

1955 Beech T-34A “Mentor” (N134LM, s/n G-292, Model A45) on display (11/10/2007) at the Aviation Nation 2007 Airshow, Nellis AFB, Las Vegas, Nevada (Photo by John Shupek copyright © 2007 Skytamer Images)

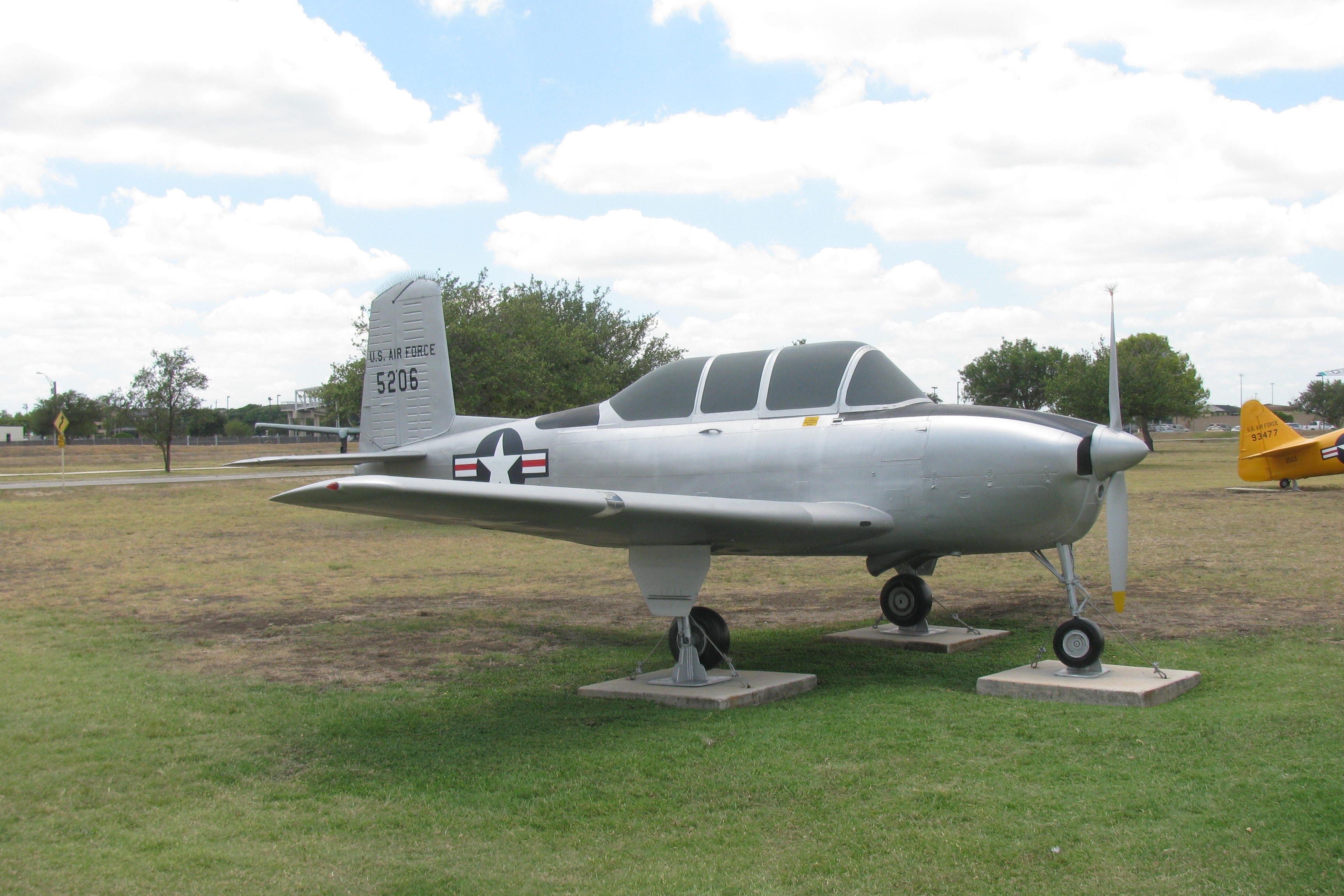

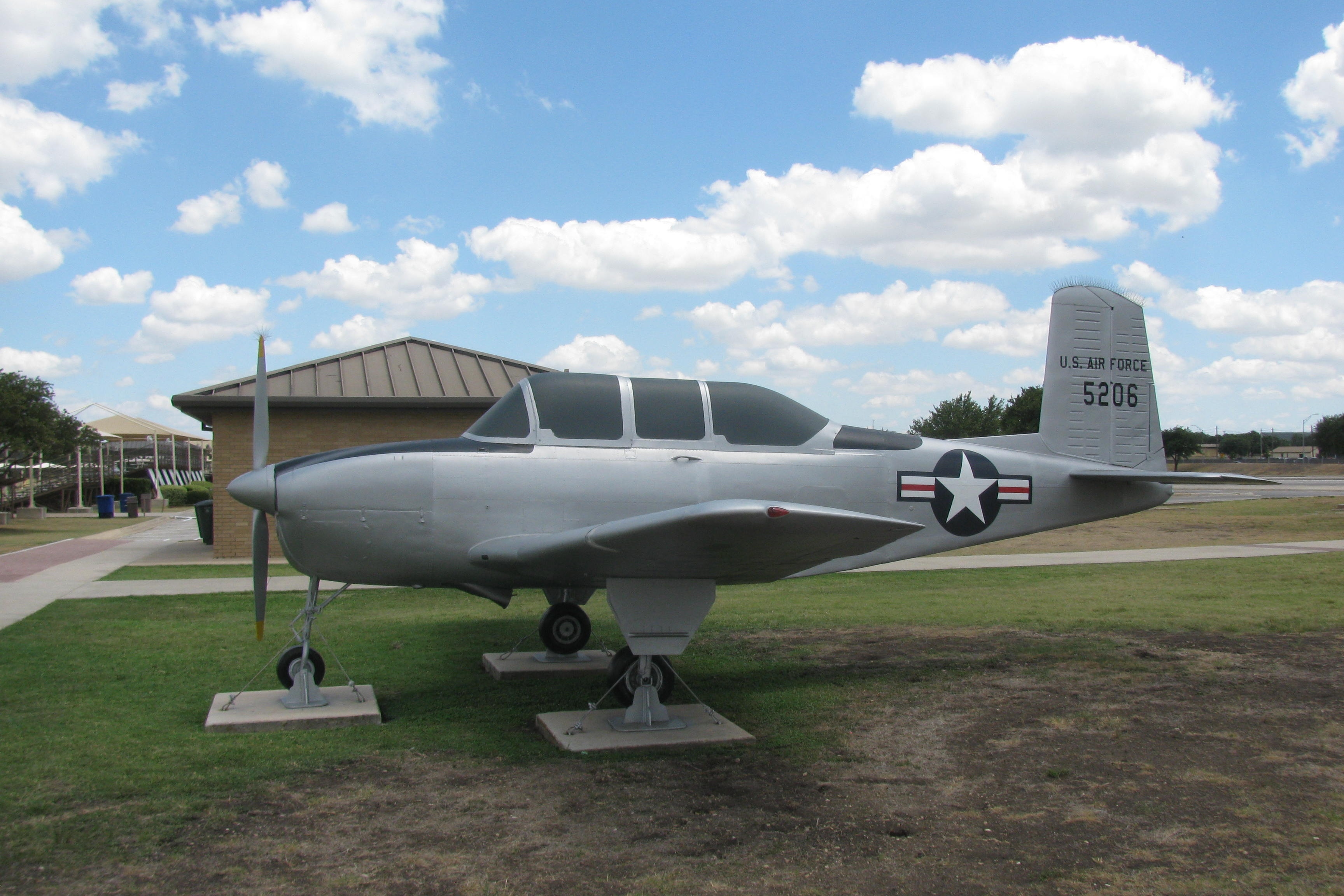

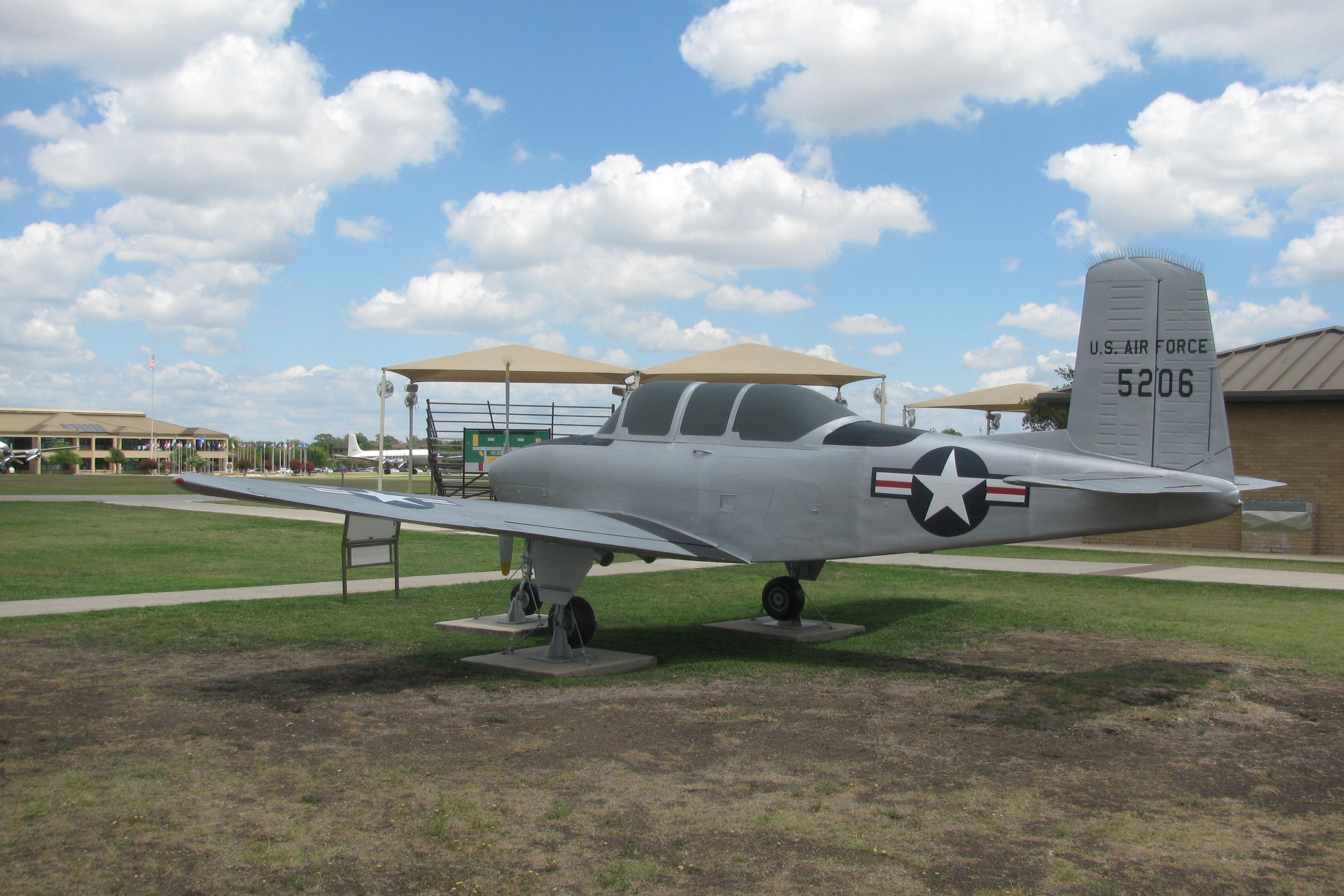

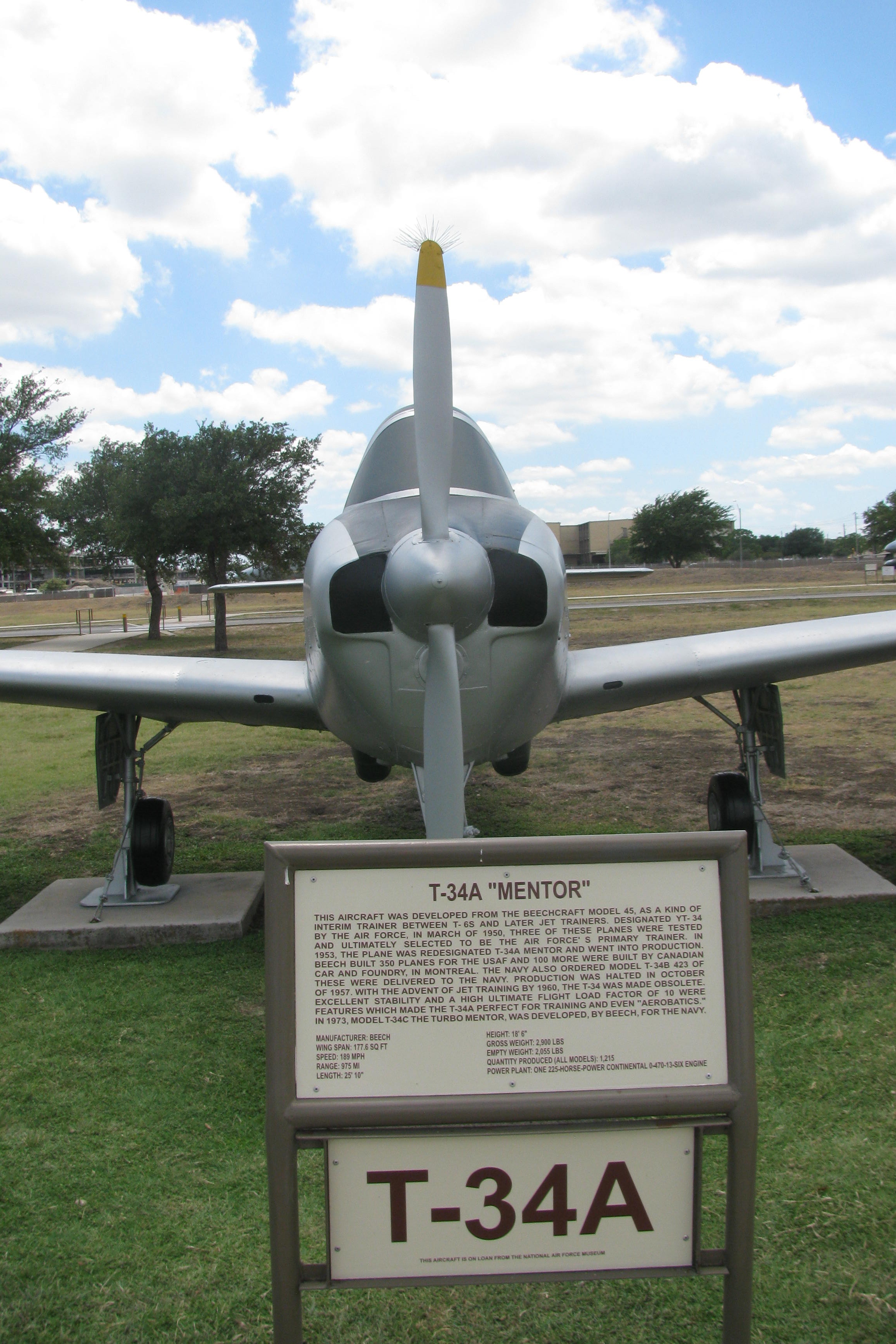

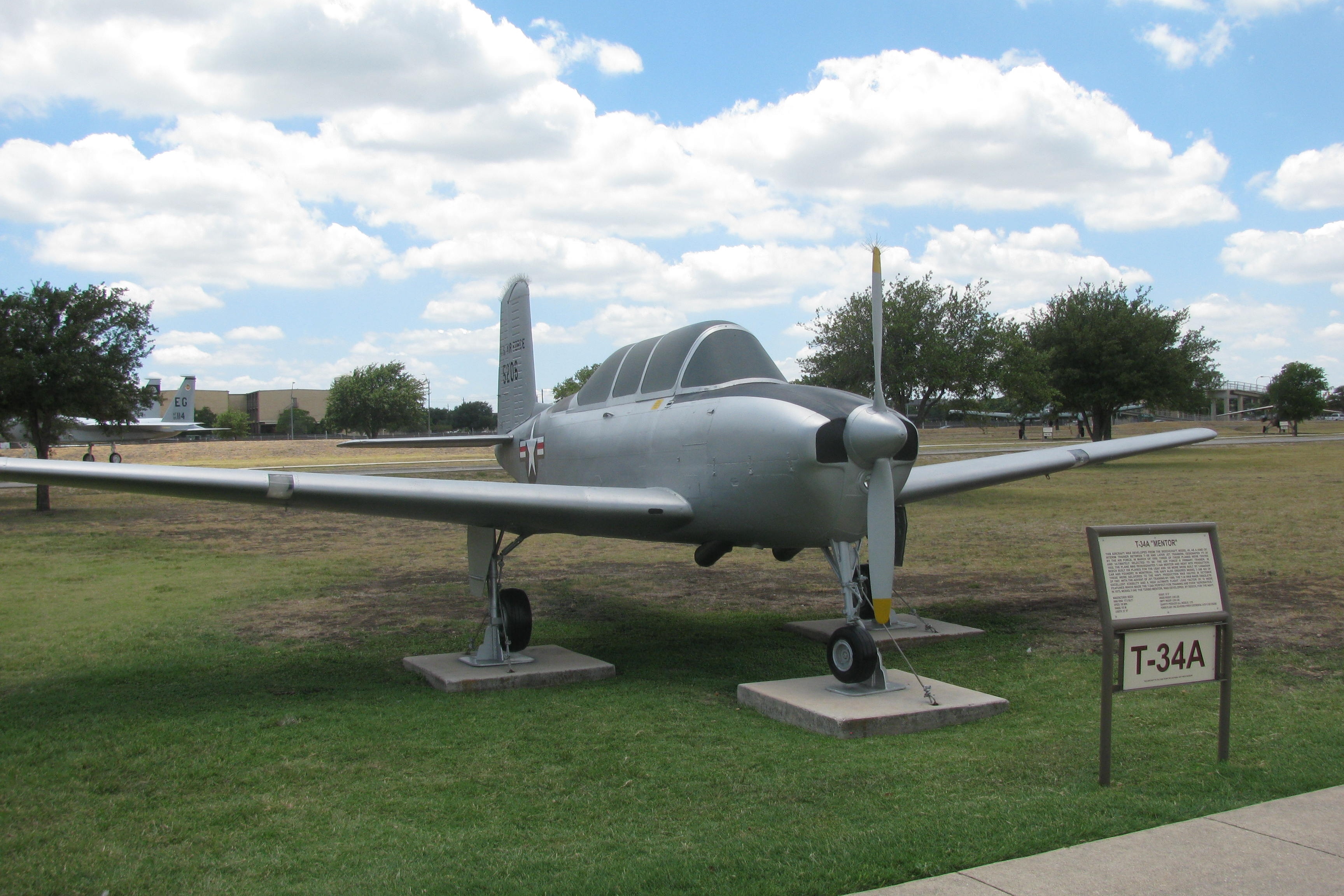

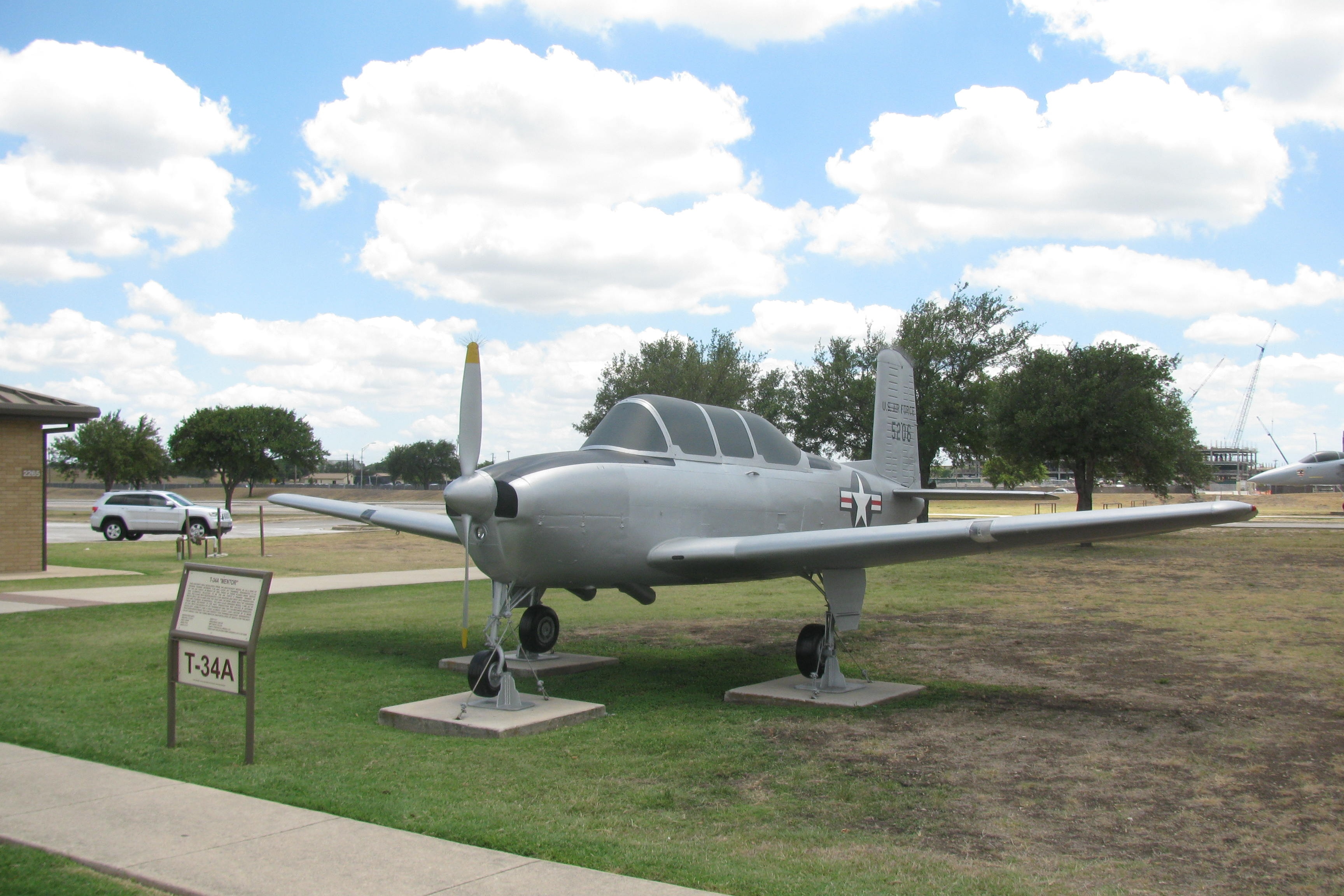

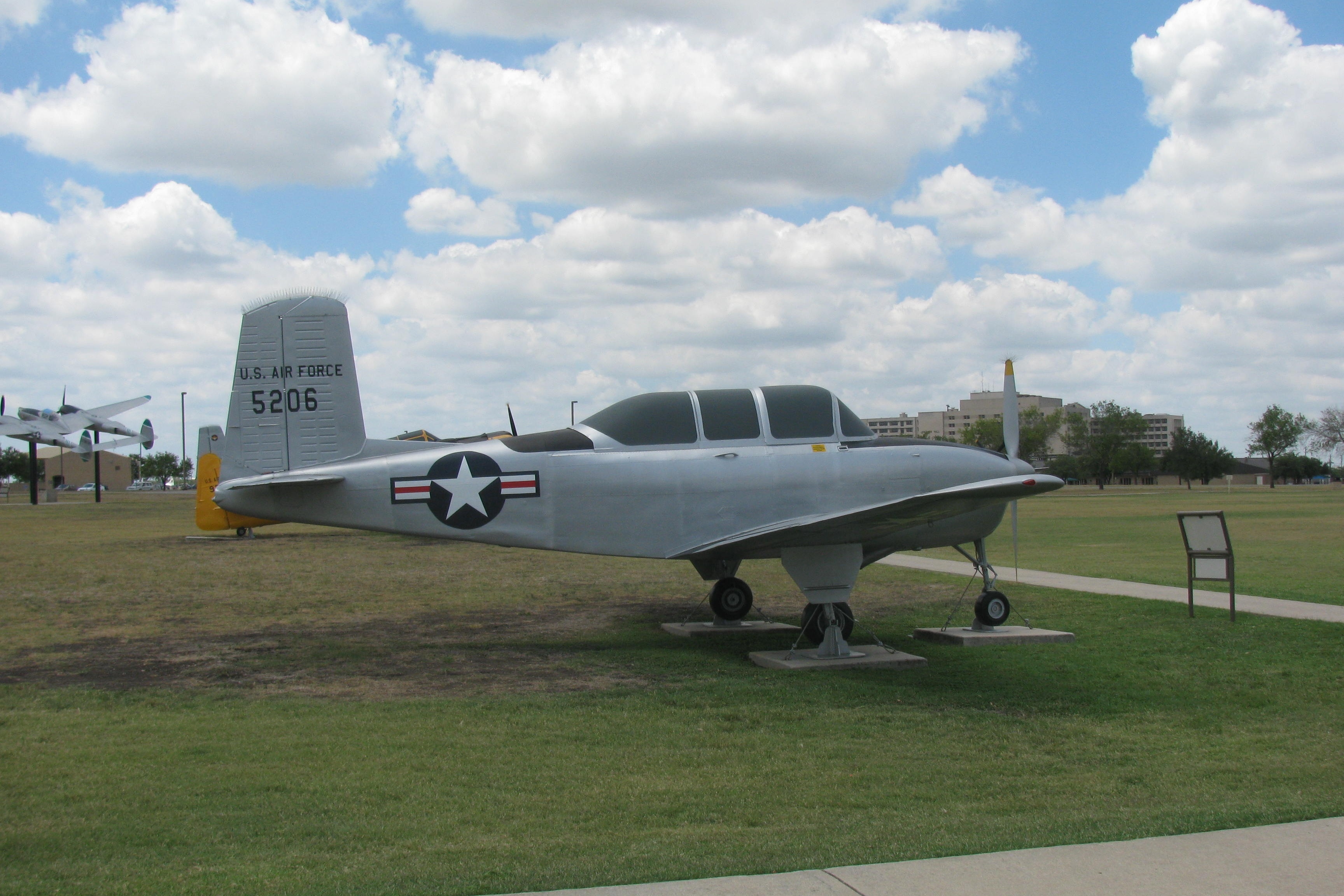

Beech T-34A-BH “Mentor” (AF 55-206, c/n G.763) on display (6/25/2011) at the USAF Airman Heritage Museum - Airpark, Lackland AFB, Texas (Photo by AFIA, 6/25/2011)

Overview ²


The Beechcraft T-34 Mentor is a propeller-driven, single-engined, military trainer aircraft derived from the Beechcraft Model 35 Bonanza. The earlier versions of the T-34, dating from around the late 1940's to the 1950's, were piston-engined. These were eventually succeeded by the upgraded T-34C Turbo-Mentor, powered by a turboprop engine. The T-34 remains in service almost six decades after it was first designed.

  • Role: Trainer aircraft
  • National origin: United States
  • Manufacturer: Beechcraft
  • First flight: 2 December 1948
  • Introduced: 1953
  • Primary users: United States Air Force, United States Navy, Japan Air Self Defense Force, Philippine Air Force
  • Produced: 1953-1959
  • Number built: 2,300+
  • Developed from: Beechcraft Bonanza

Design and Development ²


The T-34 was the brainchild of Walter Beech, who developed it as the Beechcraft Model 45 private venture at a time when there was no defense budget for a new trainer model. Beech hoped to sell it as an economical alternative to the North American T-6/NJ Texan, then in use by all services of the U.S. military.

Three initial design concepts were developed for the Model 45, including one with the Bonanza's signature V-tail, but the final design that emerged in 1948 incorporated conventional tail control surfaces for the benefit of the more conservative military (featuring a relatively large unswept vertical fin that would find its way onto the Travel Air twin-engine civil aircraft almost ten years later). The Bonanza's fuselage with four-passenger cabin was replaced with a narrower fuselage incorporating a two-seater tandem cockpit and bubble canopy, which provided greater visibility for the trainee pilot and flight instructor. Structurally the Model 45 was much stronger than the Bonanza, being designed for +10g and -4.5g, while the Continental E-185 engine of 185-hp at takeoff (less than a third of the power of the T-6's engine) was the same as that fitted to contemporary Bonanzas.

Following the prototype were three Model A45T aircraft, the first two with the same engine as the prototype and the third with a Continental E-225, which would prove to be close to the production version. Production did not begin until 1953, when Beechcraft began delivering T-34A's to the United States Air Force (USAF) and similar Model B45 aircraft for export. In 1955 production of the T-34B for the United States Navy (USN) began, this version featuring a number of differences reflecting the different requirements of the two services. The T-34B had only differential braking for steering control on the ground instead of nosewheel steering, additional wing dihedral and, to cater for the different heights of pilots, adjustable rudder pedals instead of the moveable seats of the T-34A. T-34A production was completed in 1956, with T-34B's being built until October 1957 and licensed B45 versions built in Canada (125 manufactured by Canadian Car and Foundry), Japan (173 built by Fuji Heavy Industries), and Argentina (75 by FMA) until 1958. Beechcraft delivered the last Model B45's in 1959. Total production of the Continental-engined versions in the US and abroad was 1,904 aircraft.

Beechcraft Model 73 Jet Mentor ²


In 1955 Beechcraft developed a jet-engined derivative, again as a private venture, and again in the hope of winning a contract from the US military. The Model 73 Jet Mentor shared many components with the piston-engined aircraft; major visual differences were the redesigned cockpit which was relocated further forward in the fuselage and the air intakes for the jet engine in the wing roots, supplying air to a single jet engine in the rear fuselage. The first flight of the Model 73, registered N134B, was on 18 December 1955. The Model 73 was evaluated by the USAF, which ordered the Cessna T-37, and the USN, which decided upon the Temco TT Pinto. The Model 73 was not put into production.

Beechcraft T-34C “Turbo-Mentor” ²


After a production hiatus of almost 15 years, the T-34C Turbo-Mentor powered by a Pratt & Whitney Canada PT6A-25 turboprop engine was developed in 1973. Development proceeded at the behest of the USN, which supplied two T-34B's for conversion. After re-engining with the PT6 the two aircraft were redesignated as YT-34C's, the first of these flying with turboprop power for the first time on 21 September 1973. Mentor production re-started in 1975 for deliveries of T-34C's to the USN and of the T-34C-1 armed version for export customers in 1977, this version featuring four underwing hardpoints. The last Turbo-Mentor rolled off the production line in 1990.

Operational History ²


The first flight of the Model 45 was on 2 December 1948, by Beechcraft test pilot Vern Carstens. In 1950 the USAF ordered three Model A45T test aircraft, which were given the military designation YT-34. A long competition followed to determine a new trainer, and in 1953 the Air Force put the Model 45 into service as the T-34A Mentor, while the USN followed in May 1955 with the T-34B. The US Air Force began to replace the T-34A at the beginning of the 1960's, while the U.S. Navy kept the T-34B operational until the early 1970's. As of 2007, Mentors are still used by several air forces and navies.

The T-34A and T-34C were used by the Argentine Navy during the Falklands War.

In 2004, due to a series of crashes involving in-flight structural failure during simulated combat flights, the entire US civilian fleet of T-34's was grounded by the Federal Aviation Administration. The grounding has since been eased to a series of restrictions on the permitted flight envelope.

The T-34C is still used as the primary training aircraft for United States Navy and Marine Corps pilots. The T-34C is currently being replaced by the T-6 Texan II but is still the primary aircraft at NAS Corpus Christi and NAS Whiting Field. NAS Pensacola has already completed the transition to the T-6 and the first T-6's are scheduled to arrive at Whiting Field in summer 2009.

NASA Dryden Flight Research Center has operated two T-34C aircraft. The first was previously flown at the Glenn Research Center in Cleveland, Ohio, for propulsion experiments involving turboprop engines, and then came to Dryden as a chase aircraft in 1996. That aircraft was returned to the US Navy in 2002. Dryden obtained its second T-34C in early 2005 from the Navy's Air Warfare Center Aircraft Division at NAS Patuxent River, where it was due to be retired. At Dryden, the T-34C is primarily used for chasing remotely piloted unmanned air vehicles which fly slower than NASA's F-18's mission support aircraft can fly. It is also used for required pilot proficiency flying.

The Mentor is the aircraft used by the Lima Lima Flight Team and Dragon Flight, both civilian demonstration teams. It is also used by aerobatic pilot Julie Clark, who flies her T-34 “Free Spirit” (N134JC) at air shows.

Variants ²


  • YT-34: Prototype, three built.
  • T-34A: US Air Force trainer. Replaced by the Cessna T-37 around 1960 (450 built).
  • T-34B: US Navy trainer. Used until early 70s when it was replaced by the T-34C (423 built by Beechcraft).
  • YT-34C: Two T-34B's were fitted with turboprop engines, and were used as T-34C prototypes.
  • T-34C Turbo-Mentor: Two-seat primary trainer, fitted with a turboprop engine.
  • T-34C-1: Equipped with hardpoints for training or light attack. Widely exported.
  • Turbo-Mentor 34C: Civilian version

T-34 Operators ²


Military Operators

  • Algeria
  • Argentina: Argentine Air Force, Argentine Navy
  • Bolivia
  • Canada
  • Chile: Chilean Air Force, Chilean Navy (Being replaced by the T-35 Pillán)
  • Colombia
  • Dominican Republic
  • Ecuador
  • El Salvador
  • France
  • Gabon
  • Greece
  • Indonesia
  • Japan
  • Mexico
  • Morocco
  • Peru
  • Philippines
  • Republic of China
  • Spain
  • Turkey
  • United States: United States Air Force, United States Navy, United States Marine Corps, United States Coast Guard
  • Uruguay
  • Venezuela

Civil Operators


  • Chile: Club Aéreo de Santiago
  • Turkey: Turkish Aeronautical Association, Istanbul Havacilik Kulubu
  • United States: Dragon Flight, Lima Lima Flight Team, NASA, The San Diego Salute

Specifications T-34A “Mentor” ³


Type

  • Two-seat primary trainer.

Wings

  • Low-wing cantilever monoplane. Same type structure as for the Bonanza, but with incidence of 4°.
  • Wing area: 177.6 ft.² (16.49 m²)

Fuselage

  • Metal structure with flush-riveted metal skin.
  • Tail Unit: Conventional cantilever monoplane type. All-metal structure of magnesium. Adjustable trim-tabs in elevators and rudder.
  • Fin Area: 10.39 ft.² (0.97 m²)
  • Rudder Area: 6.54 ft.² (0.61 m²)
  • Elevator Areas: 15 ft.² (1.39 m²)
  • Tailplane Areas: 37.25 ft.² (3.46 m²)
  • Tailplane Span: 12 ft. 2-1/8 in. (3.71 m)

Landing Gear

  • Retractable tricycle type.
  • Same as for Bonanza.
  • Electric retraction with emergency hand control.
  • Beech air-oil struts on all wheels.
  • Split-type wheels with single disc hydraulic brakes.
  • Wheel track: 9 ft. 8-3/8 in. (2.94 m)
  • Wheelbase: 7 ft. 5-1/2 in. (2.28 m)

Power Plant

  • One 220-hp Continental O-470-13 six-cylinder horizontally-opposed air-cooled engine.
  • Beech Model 278-101 all-metal constant-speed air screw 7 ft. (2.13 m) in diameter.
  • Two wing fuel tanks, Capacity 50 U.S. gallons (225 liters).
  • Oil capacity 3 U.S. gallons (11.35 liters).
  • Entire power-plant assembly including engine, airscrew, accessories and oil system, may be changed as a unit.

Accommodation

  • Tandem cockpits under continuous transparent canopy with sections over each seat which may be independently opened or latched in intermediate positions.
  • Conventional three-control duplicated in each cockpit.
  • Adjustable seats in both cockpits.
  • Heating and ventilation.
  • Windshield defroster.
  • VHF radio receiver and transmitter.
  • Baggage compartment half of the rear cockpit.

Armament (optional)

  • One machine-gun or camera gun in each wing.
  • Bomb racks or rocket rails under wings.

Dimensions

  • Span: 32 ft 10 in (10 m)
  • Length: 25 ft 11 in (7.9 m)
  • Height: 9 ft 7 in (2.92 m)

Weights and Loadings

  • Weight empty: 2,156 lbs (978 kg)
  • Weight loaded: 2,950 lbs (1,338 kg)
  • Wing loading: 16.6 lbs/ft² (81.1 kg/m²)
  • Power loading: 13.1 lb/hp (5.95 kg/hp)

Performance

  • Maximum speed at sea level: 189 mph (304 km/h)
  • Maximum cruising speed: 173 mph (277 km/h) at 10,000 ft (3,050 m)
  • Stalling speed (flaps down): 56 mph (90 km/h)
  • Rate of climb at sea level: 1,120 fpm (340 m/min)
  • Service ceiling: 18,200 ft (5,550 m)
  • Maximum cruising range: 737 miles (1,186 km)
  • Take-off to 50 feet (15.25 m) no wind (10° flaps): 1,200 ft (366 m)
  • Landing run from 50 feet (15.25 m) no wind (full flaps): 960 ft (293 m)

References


  1. Photos: John Shupek, Copyright © 1992, 1998, 2000, 2003, 2006, 2007 Skytamer Images. All Rights Reserved
  2. Wikepedia, the free encyclopedia, T-34 Mentor
  3. Taylor, John W.R., "Beechcraft: The Beechcraft Model 45 Mentor." Jane's All The World's Aircraft 1960-61. Jane's All The World's Aircraft Publishing Co. Ltd, London, 1960. pp. 257
  4. Photos: A Friend In Arizona (AFIA), 6/25/2011
